    Home / STC KITS / Hartzell STC Piper PA28-236 Dakota With O-540-J3A5D Engine (3-Blade Scimitar)

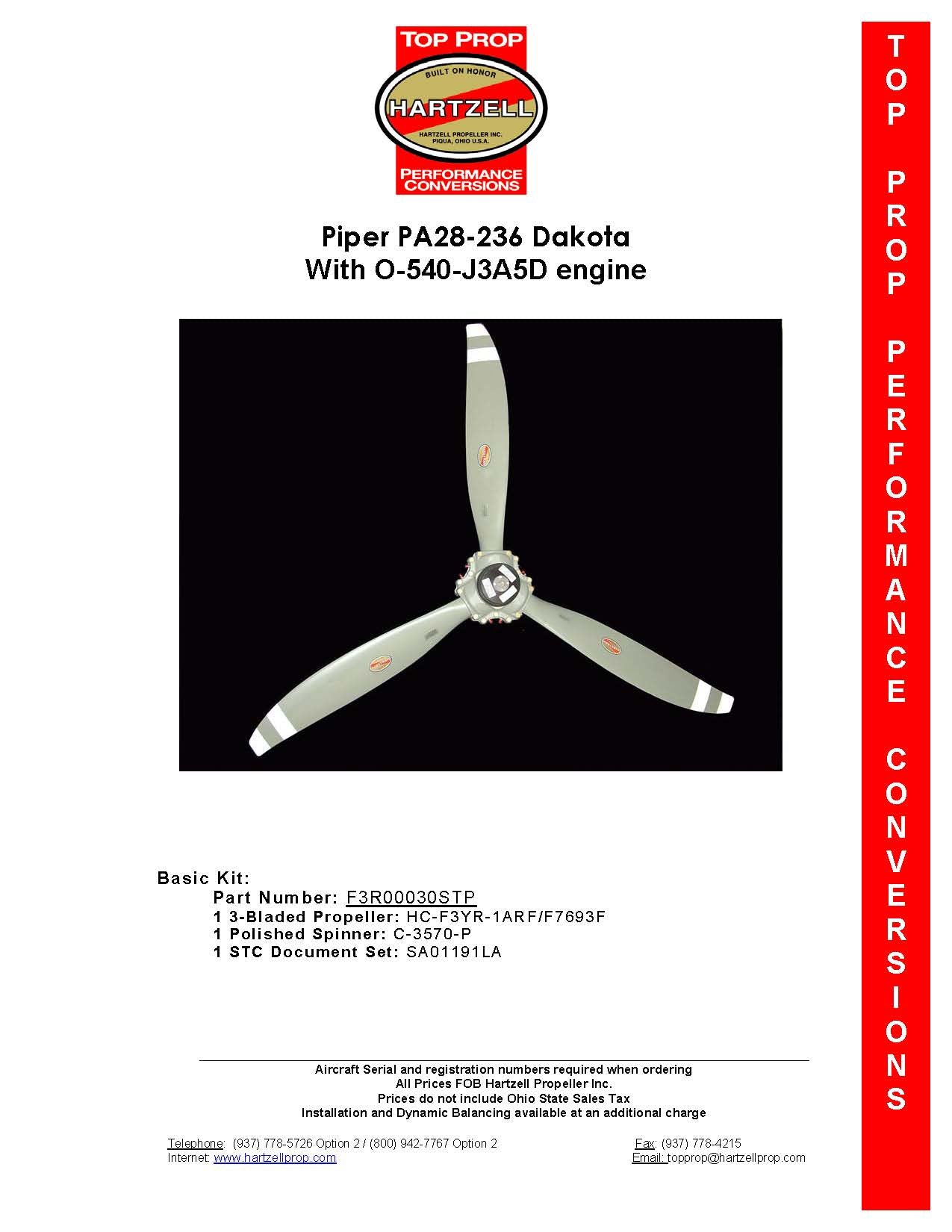

    PIPER-DAKOTA-PA28-236-F3R00030STP-PAGE-1

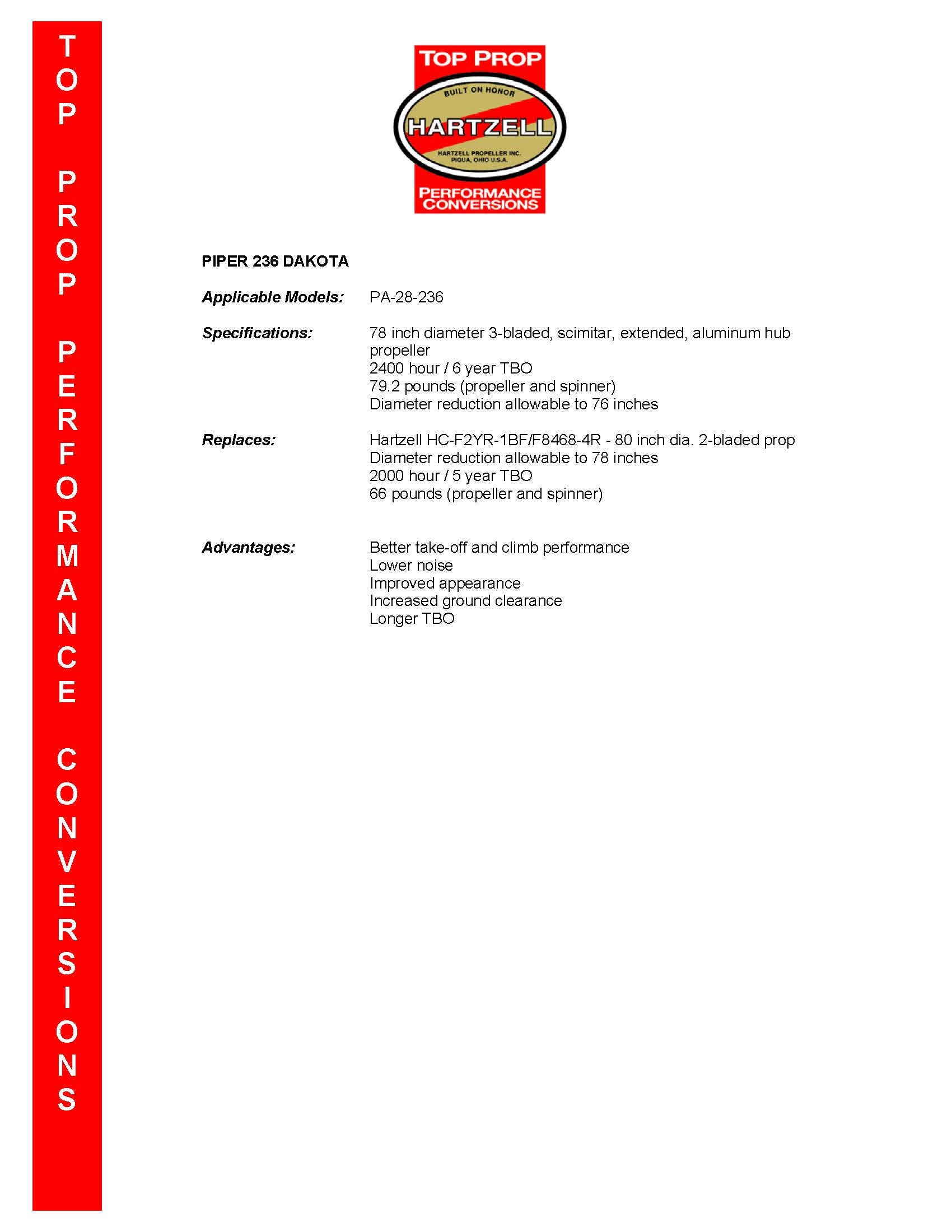

    PIPER-DAKOTA-PA28-236-F3R00030STP-PAGE-2
    PIPER-DAKOTA-PA28-236-F3R00030STP-PAGE-1
    PIPER-DAKOTA-PA28-236-F3R00030STP-PAGE-2

    Hartzell STC Piper PA28-236 Dakota With O-540-J3A5D Engine (3-Blade Scimitar)

    $19,823.00

    Hartzell STC Piper PA28-236 Dakota  With O-540-J3A5D Engine (3-Blade Scimitar)

    (LOC: W-10A) REV25

    Hartzell STC Basic Kit:
    Part Number: F3R00030STP
    (1) 3-Bladed Propeller: HC-F3YR-1ARF/F7693F
    (1) Polished Spinner: C-3570-P
    (1) STC Document Set: SA01191LA
    http://hartzellprop.com/wp-content/uploads/PIPER-PA28-236.pdf

    PRODUCT ATTRIBUTES:

    COUNTRY OF ORIGIN:

    ECCN:

    WEIGHT:

    DIMENSIONS: x x

    HARMONIZED CODE:

    STC MODIFIER:

    Collections: Fees products, Products, STC KITS

    Type: HARTZELL TOP PROP

    Category: 3-BLADE, DAKOTA, HARTZELL TOP PROP, PA28, PIPER, PIPER TOP PROP, STC KITS
