    Home / STC KITS / Piper PA28R-180, 200, 201 Arrow With IO-360-C1C(6), -B1E, -C1C Engine (3-BLADE)

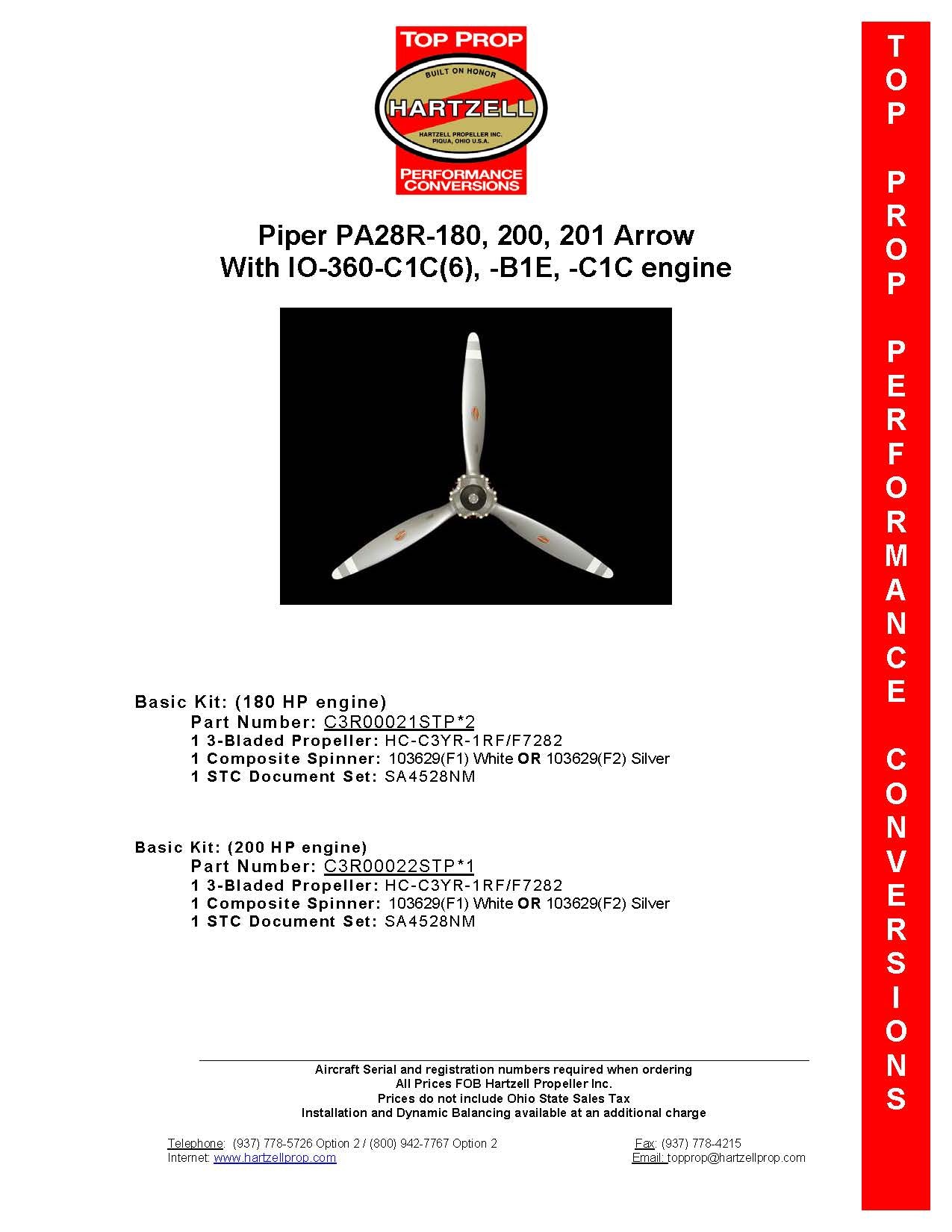

    PIPER-ARROW-PA28-C3R00022STP1-PAGE-1

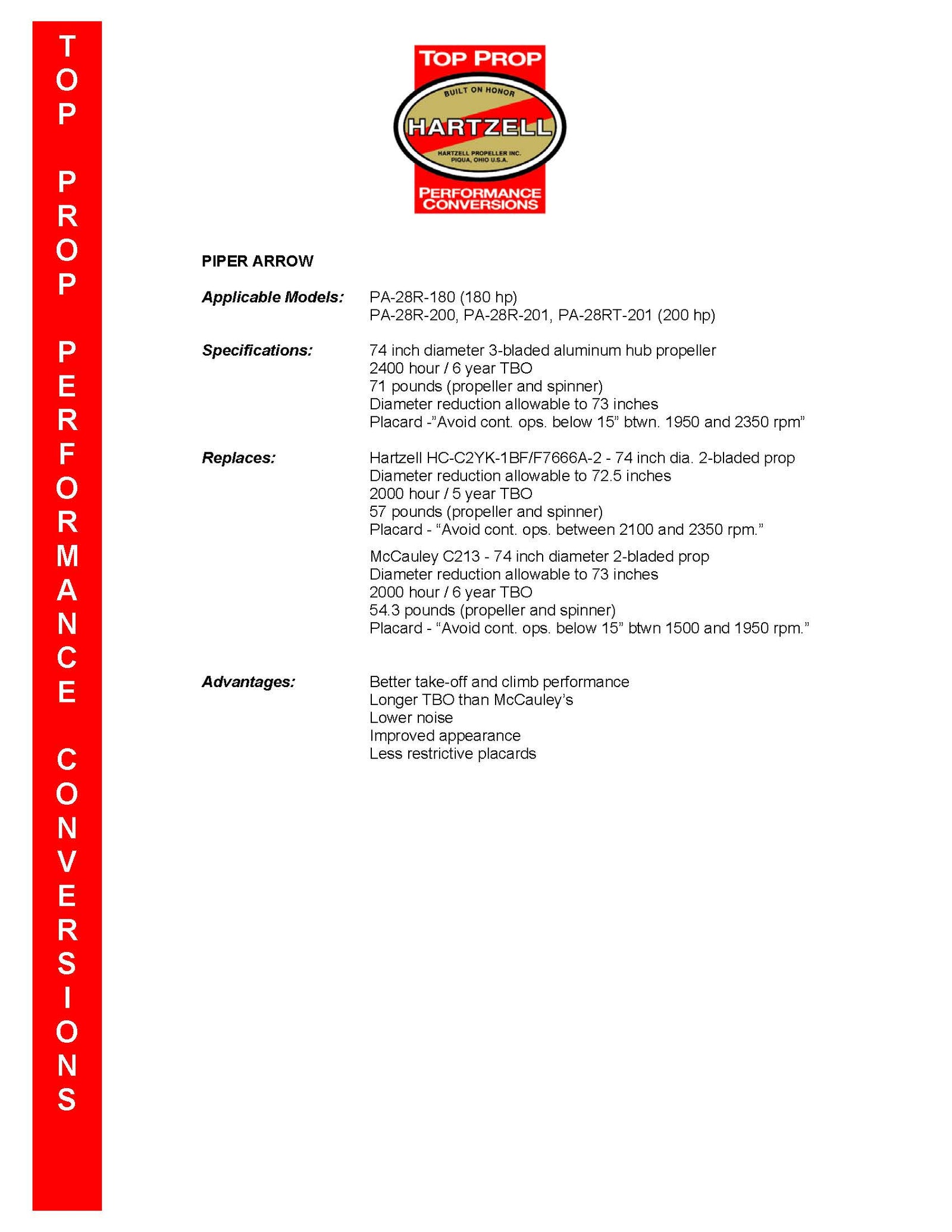

    PIPER-ARROW-PA28-C3R00022STP1-PAGE-2
    PIPER-ARROW-PA28-C3R00022STP1-PAGE-1
    PIPER-ARROW-PA28-C3R00022STP1-PAGE-2

    Piper PA28R-180, 200, 201 Arrow With IO-360-C1C(6), -B1E, -C1C Engine (3-BLADE)

    $19,741.00

    Piper PA28R-180, 200, 201 Arrow  With IO-360-C1C(6), -B1E, -C1C Engine (3-BLADE)

    (LOC: W-10A) REV25

    Hartzell STC Basic Kit:
    (200 HP Engine)
    Part Number: C3R00022STP*1
    (1) 3-Bladed Propeller: HC-C3YR-1RF/F7282
    (1) Composite Spinner: 103629(F1) White or 103629(F2) Silver
    (1) STC Document Set: SA4528NM
    https://hartzellprop.com/wp-content/uploads/PIPER-ARROW-1.pdf

    PRODUCT ATTRIBUTES:

    COUNTRY OF ORIGIN:

    ECCN:

    WEIGHT:

    DIMENSIONS: x x

    HARMONIZED CODE:

    STC MODIFIER:

    Collections: Fees products, Products, STC KITS

    Type: HARTZELL TOP PROP

    Category: 3-BLADE, ARROW, HARTZELL TOP PROP, PA28, PIPER, PIPER TOP PROP, STC KITS
