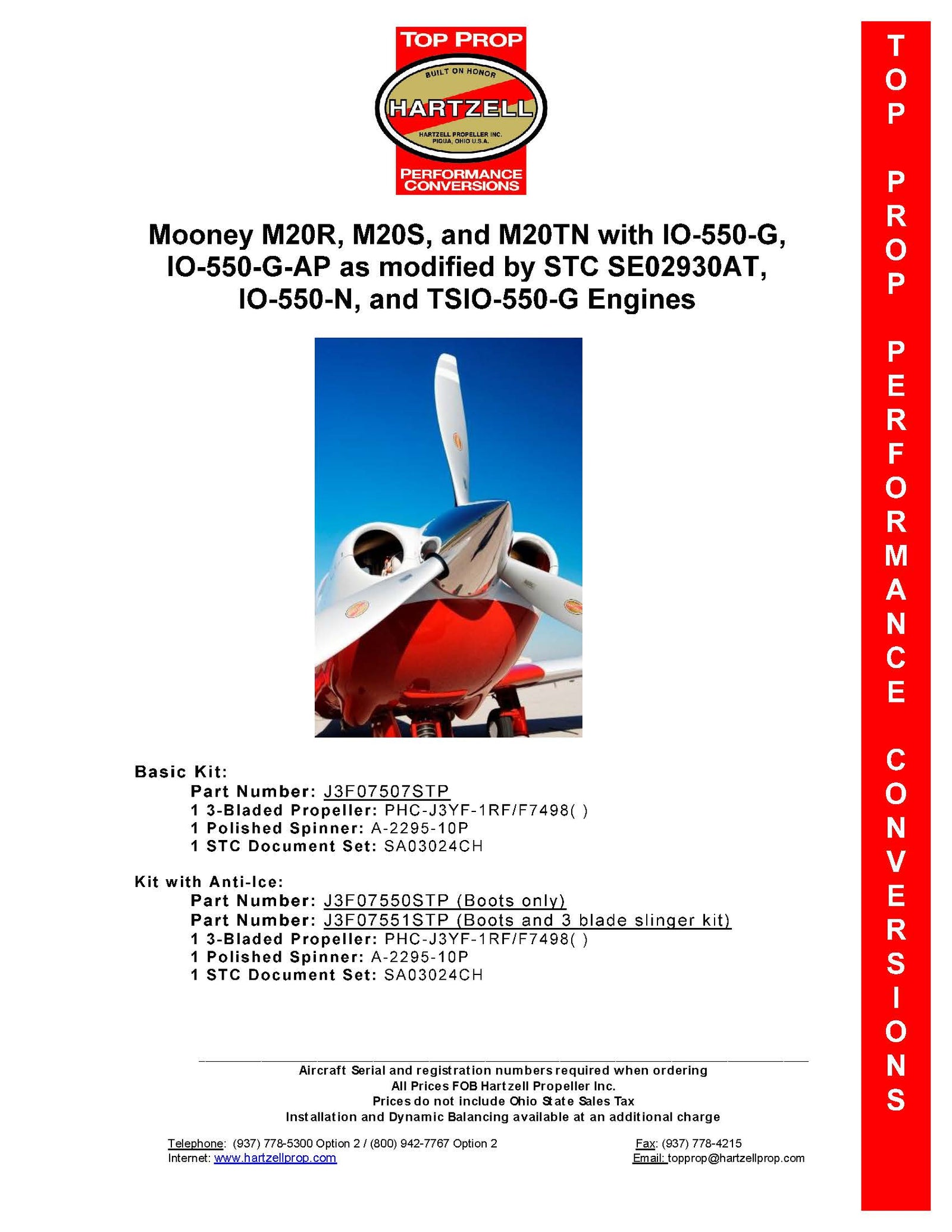

Hartzell STC Mooney M20R, M20S, and M20TN with IO-550-G, IO-550-G-AP as Modified by STC SE02930AT,IO-550-N, and TSIO-550-G Engines (3-Blade Scimitar)
$20,907.00 - $26,829.00
Hartzell STC Mooney M20R, M20S, and M20TN with IO-550-G, IO-550-G-AP as Modified by STC SE02930AT,IO-550-N, and TSIO-550-G Engines (3-Blade Scimitar)
(LOC: W-10A) REV25
Hartzell STC Basic Kit:
Part Number: J3F07507STP
(1) 3-Bladed Propeller: PHC-J3YF-1RF/F7498
(1) Polished Spinner: A-2295-10P
(1) STC Document Set: SA02004CH
Hartzell STC Kit with TKS Boots:
Part Number: J3F07550STP
(1) 3-Bladed Propeller: PHC-J3YF-1RF/F7498B
(1) Polished Spinner: A-2295-10P
(1) STC Document Set: SA02004CH
Hartzell STC Kit with TKS Boots & Slinger Ring:
Part Number: J3F07551STP
(1) 3-Bladed Propeller: PHC-J3YF-1RF/F7498B
(1) Polished Spinner: A-2295-10P
(1) STC Document Set: SA02004CH
PRODUCT ATTRIBUTES:
COUNTRY OF ORIGIN:
ECCN:
WEIGHT:
DIMENSIONS: x x
HARMONIZED CODE:
STC MODIFIER:
